Digital Technology, Inc.

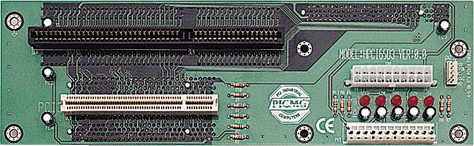

HPCI-6SD3 6 Slots, Double Sides PICMG Bus Backplane




Features
1 PICMG, 3 PCI, and 2 ISA slots
1 system
Double Sides
AT power connector
ATX power connector
Designed by 4 layers PCB with Ground and Power planes for reducing noise and making lower impedance
Provides industrial Block Terminal for the specified industrial power input. The additional keyboard connector may be applied for any different chassis or applications
Dimensions: 261 x 79.5 mm (L x W)
