	10.4” panel pc with 1 Ghz CPU, Touchscreen, 2 x LAN, 4 x USB 2.0, 4 x COM




	$1699

		Qty 1 to 19

Features:

10.4” TFT LCD with touchscreen
1 Ghz CPU
4 serial ports and 4 USB ports
2 LAN ports, 10/100 Mbps
Low power, rugged design
Bottom mounted connectors
Runs Windows or Linux OS
Compact size: 12,2” x 9.5” x 4.6”


	The PPC-1072PT is a compact flat panel PC that can be used in industrial, mobile, medical, military and home automation applications. It has an 10.4” high bright LCD with touchscreen, a fast 1 Ghz cpu. It is available with an optional 12 or 24 vdc input power supply for mobile applications.

Specifications
LCD	10.4” color TFT LCD, 640 x 480 resolution, 262, 144 high colors (PPC-1072PT-SVGA = 800 x 600 resolution)
LCD brightness	180 nits (cd/m2)
CPU	1 Ghz low power CPU
Chipset	VIA CLE 266 chipset, VT8623 and VT8235
Video	AGP 8X with hardware MPEG-II engine for high speed video. Shares 16, 32 or 64 Mb system memory
System Memory	Supports up to 1 GB high speed DDR RAM
Hard Drive	40 GBSlim size 2.5” HDD
Solid State disk	Optional
Options
CD or DVD drive	Slim CDrom to load software
Touchscreen	4 wire Analog Resistive
USB ports	4 x USB 2.0 ports
Serial ports	3 x RS232 and 1 x RS232/422/485
Printer port	LPT port for Printer connection
LAN	2 x Ethernet 10/100 Mbps ports on rear I/O panel
Digital I/O	None
Audio	1 x rear I/O panel
Speakers	Built in 2 stereo speakers. External audio jack at the I/O panel
Keyboard	1 x PS/2 keyboard port
Mouse	1 x PS/2 mouse port
VGA monitor output	1 x 15 pin connector for an external monitor on rear I/O panel
Expansion Slots	1 x PCI expansion - 32 bit PCI expansion socket
Power Supply	Universal 100 - 240V power supply, Optional 12V available
Power Consumption
Front Panel	Solid aluminum, 100% waterproof, meets Nema 4, 12 and IP 65, 56 standards
Consturction	Aluminum front panel with steel rear housing
Dimensions (WxHxD)	12.24” x 9.48” x 4.6” (311 x 241 x 117 mm)
Weight
Temperature	0 to 50 deg. C in free air
Vibration rating	Meets IEC-60068 life random vibration test from 5 to 500 Hz at 2G RMS running Win XP Pro
Shock rating	Meets IEC-60068 life shock test at 15G for 11 ms duration running Win XP Pro
Mounting options	Meets VESA-75 wall mount standard Wall-mount kit is optional
Operating System	Windows and Linux
Ordering Information	PPC-1072PT with 1 Ghz cpu, 256 Mb DDR ram, 40 GB hard drive, slim Cdrom and touchscreen = $1699
Options	Windows XP Home installed - add $109 Windows XP Pro installed - add $195

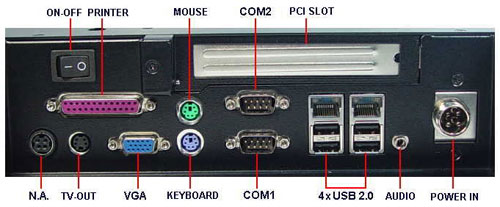

				Rear I/O connector panel





			Dimensions
