Specifications
|
|
|
LCD
|
12.1 color TFT, 1024 x 768, high resolution, High brightness 200 cd/m2 , 16,770,000 colors
|
|
LCD brightness
|
200 nits (cd/m2)
|
|
CPU
|
1.2 Ghz low power CPU
|
|
Chipset
|
Intel 855 chipset and integrated Intel 852GM for high speed 3D/2D graphic procing engine
|
|
Video
|
64 MB video memory for high speed graphics 2D, 3D acceleration
|
|
System Memory
|
Slim size SO-DIMM DDR RAM up to 1 GB
|
|
Hard Drive
|
Slim size anti-vibration 20/40 GB HDD
|
|
Solid State disk
|
|
|
Options
|
|
|
CD or DVD drive
|
Optional Slim Size CD-ROM
|
|
Touchscreen
|
6 wire resistive touch screen
|
|

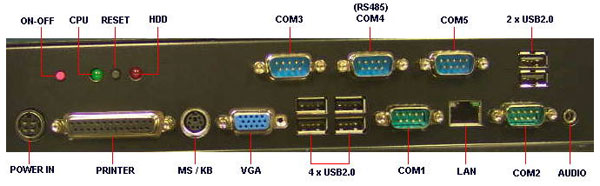

USB ports
|
6 x USB 2.0 at the I/O plate
|
|
Serial ports
|
5 x RS232 and 1 x RS232/422/485 5 COm ports are external at the I/O plate, 1 is outside for touchscreen
|
|
Printer port
|
LPT port for Printer connection
|
|
LAN
|
Intel 82540EM support ultra high speed Gigabit LAN
|
|
Digital I/O
|
|
|
Audio
|
Built in 2 x speakers. Intel ICH4 with Realtek ALC650 AC97 codec supporting 5.1 channel audio sound
|
|
Speakers
|
Built in 2 x speakers. Intel ICH4 with Realtek ALC650 AC97 codec supporting 5.1 channel audio sound
|
|
Keyboard & Mouse
|
1 PS/2 for Mouse/Keyboard
|
|
|
|
|
VGA monitor output
|
Yes, 15 Pin D connector on rear I/O panel
|
|
Expansion Slots
|
1 x Compact Flash slot for future expansion
|
|
Power Supply
|
Universal power supply grade AC 110-240V power. DC power supplies are also available
|
|
Power Consumption
|
|
|
Front Panel
|
Solid aluminum, 100% waterproof, Meets NEMA-4, 5, 6,7,8, 12,
|
|
Construction
|
Aluminum front panel with steel rear housing
|
|

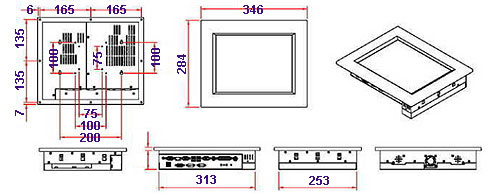

Dimensions (WxHxD)
|
13.6 x 11.2 x 3.75 (346 x 284 x 95 mm)
|
|
Weight
|
|
|
Temperature
|
-1 to 50 deg. C in free air
|
|
Vibration rating
|
Meets IEC-60068 life random vibration test from 5 - 500 Hz at 2G RMS under Win XP Pro
|
|
Shock rating
|
Meets IEC-60068 life shock test at 15G for 11 ms duration running Win XP Pro
|
|
Mounting options
|
Meets VESA-75, 100 wall mount standard Wall-mount kit is optional
|
|
Operating System
|
|
|
Ordering Information
|
PPC-1280T with 1.2Ghz P4 CPU, 256 mb ram, 40 Gb HD, Cdrom and touchscreen = $1997
|
|
Options
|
Windows XP Home - add $109 Windows XP Pro add $195
|
