Specifications
|
|
|
LCD
|
17 TFT LCD, 1280x 1024 high resolution 250 cd/m2 high brightness, 16.7 million colors, 50,000 hrs
|
|
LCD brightness
|
250 nits, high brightness
|
|
CPU
|
1 Ghz high speed, low power CPU
|
|
Chipset
|
VIA CLE 266 chipset, VT8623 and VT8235
|
|
Video
|
AGP 8X with hardware MPEG-II engine for high speed video. Shares 16, 32 or 64 Mb system memory
|
|
System Memory
|
256 mb DDR ram is standard and up to 1 Gb DDR ram is optional
|
|
Hard Drive
|
40 GB slim, anti vibration 2.5 hard drive is standard, larger drives optional
|
|
Solid State disk
|
Optional
|
|
Options
|
|
|
CD or DVD drive
|
Optional slim CDrom drive
|
|
Touchscreen
|
Resistive, 6 wire
|
|
USB ports
|
4 x USB 2.0 ports
|
|
Serial ports
|
4 x COM ports (2 on rear I/O panel, 1 internal used for touchscreen, 1 x RS232/422/485)
|
|
Printer port
|
1 printer port on rear I/O panel
|
|
LAN
|
2 x Ethernet 10/100 Mbps ports on rear I/O panel
|
|
Digital I/O
|
None
|
|
Audio
|
1 x rear I/O panel
|
|
Speakers
|
2 built in
|
|
Keyboard
|
1 x PS2 keyboard port on rear I/O panel
|
|
Mouse
|
1 x PS2 mouse port on rear I/O panel
|
|
VGA monitor output
|
1 x 15 pin connector for an external monitor on rear I/O panel
|
|
Expansion Slots
|
PCI slot
|
|
Power Supply
|
Universal 100 - 240 vac external power adapter, Optional 12 or 24 vdc available
|
|
Power Consumption
|
|
|
Front Panel
|
Solid 8mm thick aluminum, 100% waterproof, meets Nema 4, 12 and IP 65, 56 standards
|
|
Consturction
|
Aluminum front panel with 1 mm steel rear housing
|
|

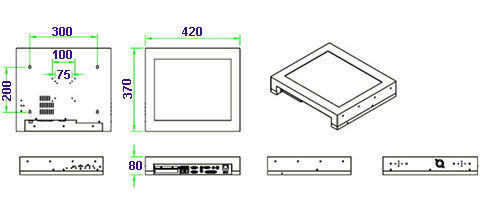

Dimensions (WxHxD)
|
16.53 x 14.56 x 3.15 (420 x 370 x 80 mm)
|
|
Weight
|
|
|
Temperature
|
0 to 50 deg. C in free air
|
|
Vibration rating
|
Meets IEC-60068 life random vibration test from 5 to 500 Hz at 2G RMS running Win XP Pro
|
|
Shock rating
|
Meets IEC-60068 life shock test at 15G for 11 ms duration running Win XP Pro
|
|
Mounting options
|
Rear VESA standard 75 mm hole pattern for all standard mounting brackets
|
|
Operating System
|
Windows or Linux (Not included in standard version)
|
|
Ordering Information
|
PPC-1772PT with 1 Ghz cpu, 256 mb ram, 40 Gb hard drive, touchscreen
|
|
Options
|
Windows XP Home - add $109 Windows XP Pro add $195
|
