Specifications
|
|
|
LCD
|
8 Sharp TFT LCD display, 640 x 480 resolution, high bight 380 cd/m2 display, 262, 144 high colors
|
|
LCD brightness
|
high bright 380 cd/m2 display
|
|
CPU
|
1 Ghz low power CPU
|
|
Chipset
|
VIA CLE 266 chipset, VT8623 and VT8235
|
|
Video
|
AGP 8X with hardware MPEG-II engine for high speed video. Shares 16, 32 or 64 Mb system memory
|
|
System Memory
|
Supports up to 1 GB high speed DDR RAM
|
|
Hard Drive
|
Slim size 2.5 HDD from 10/20/30/40 GB
|
|
Solid State disk
|
Optional
|
|
GPS
|
Optional high precision GPS engine board and Active GPS antenna for mobile applications
|
|
CD or DVD drive
|
None, use external USB CDrom to load software
|
|
Touchscreen
|
4 wire Analog Resistive
|
|

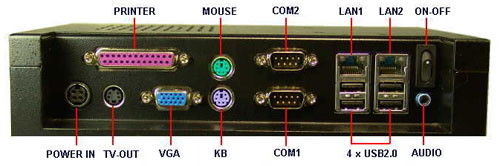

USB ports
|
4 x USB 2.0 ports
|
|
Serial ports
|
3 x RS232 and 1 x RS232/422/485
|
|
Printer port
|
LPT port for Printer connection
|
|
LAN
|
2 x Ethernet 10/100 Mbps ports on rear I/O panel
|
|
Digital I/O
|
None
|
|
Audio
|
1 x rear I/O panel
|
|
Speakers
|
Built in 2 stereo speakers. External audio jack at the I/O panel
|
|
Keyboard
|
1 x PS/2 keyboard port
|
|
Mouse
|
1 x PS/2 mouse port
|
|
VGA monitor output
|
1 x 15 pin connector for an external monitor on rear I/O panel
|
|
Expansion Slots
|
None external, one internal on main board
|
|
Power Supply
|
Universal 100 - 240V power supply, Optional 12 vdc and 24 vdc power supplies are available
|
|
Power Consumption
|
|
|
Front Panel
|
Solid 8mm thick aluminum, 100% waterproof, meets Nema 4, 12 and IP 65, 56 standards
|
|
Consturction
|
Aluminum front panel with 1 mm steel rear housing
|
|

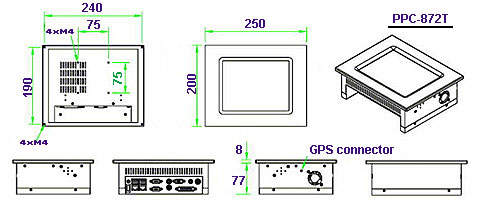

Dimensions (WxHxD)
|
9.84 x 7.87 x 3 (250 x 200 x 77 mm)
|
|
Weight
|
|
|
Temperature
|
0 to 50 deg. C in free air
|
|
Vibration rating
|
Meets IEC-60068 life random vibration test from 5 to 500 Hz at 2G RMS running Win XP Pro
|
|
Shock rating
|
Meets IEC-60068 life shock test at 15G for 11 ms duration running Win XP Pro
|
|
Mounting options
|
Meets VESA-75 wall mount standard Wall-mount kit is optional
|
|
Operating System
|
Windows and Linux
|
|
Ordering Information
|
PPC-872PT with 1 Ghz cpu, 256 Mb DDR ram, 40 GB hard drive, touchscreen = $1499
|
|
Options
|
Windows XP Home installed - add $109 Windows XP Pro installed - add $195
|
