Specifications

• LCD size: 10.4”
• Interface: Analog VGA 15 pin D connector
• Max resolution: 800 x 600
• Brightness: 260 nits
• LCD colors: 262,000
• Contrast ratio: 250:1 typical
• Viewing angle: Horizontal - 90 deg, Vertical = 50 deg
• LCD MTBF: 50,000 hours
• Backlight MTBF: 25,000 hours
• Front panel construction: Plastic (white)
• Front panel protection:  Meets IP65
• Chassis: Heavy duty steel construction
• Dimensions (WxHxD):  12.3” x 9.53” x 2.17” (312 x 242 x 55 mm)
• Weight: 5.5lbs (2.5kg)     Shipping is approx. 11 lbs (5kg)
• OSD: On screen display and setup via front panel keypad
• Power: Power adapter - 45 watts
• Mounting:  Panel, Wall, Rack and Swing Arm (Vesa 75/100mm hole pattern on rear)
• Operating temperature: 0 to 50 deg. C
• Touchscreen option: T-R104B (10.4” Resistive type)

Ordering Information:

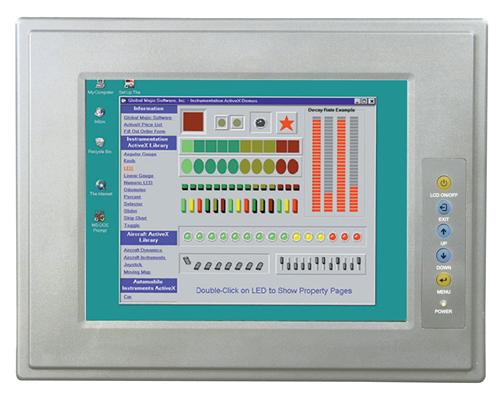

• DM104W 10.4” LCD industrial monitor
• DM-104W/T-R104B 10.4” LCD industrial monitor with touchscreen (resistive)

Accessories:

• Rack mounting kit 19” rack panel (6U): RK 104
• Swing arm: ARM 11
• Table top stand: Stand 100
