 Compact fanless computer with LCD and 3 LAN ports - mounts in a drive bay



  • Small - 5.75”W x 1.67”H x 8.76”D
  • Fanless design
  • 300 Mhz CPU
  • Optional 2 line LCD module
  • One 2.5” HDD Drive Bay
  • 3 LAN ports
  • Weight 2 lbs

Price: $399

User Manuals

Internal SBC           Chassis

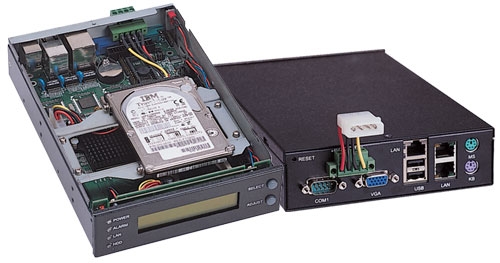

This is a very compact computer that fits into a standard 5.25” drive bay. It is a fanless design with a 300 Mhz CPU and 3 LAN ports. These are perfect for small stand alone systems, embedded industrial controllers or ganged in a standard mid tower server case for a small cluster system.  It will run Linux or Windows and the optional LCD module includes pushbuttons and LEDs and is programmable. This is a very inexpensive and versatile little computer for many applications.


  • CPU: AMD Geode GX1-300Mhz
  • Chipset: AMD CS5530A
  • System Memory: One 144 pin SO-DIMM socket supports up to 512 Mb
  • BIOS: Award PnP BIOS
  • Video: CS5530A chipset, shares with ram up to 4 mb,
  • Resolution: 1280 x 1024, 256 colors for CRT and 1024 x 768, 64k colors for LCD
  • Video connections: VGA 15 pin D type for CRT and 18 bit 44 pin header for LCD
  • Serial ports: 2 RS232, one 9 pin D type on rear and one 10 pin header on board.
  • USB ports: 2 USB 1.1 compliant
  • Printer port: 1 internal on board
  • IRDA port: 1 internal on board
  • Hard drive: One internal 2.5” drive bay, 2 IDE headers, 40 pin, on board
  • Floppy drive port: 1 header on board
  • Digital I/O: 4 TTL inputs and 4 TTL outputs, header on board
  • LAN: 3 Ethernet ports on rear of enclosure.  Realtek RTL 8100B chip, 10/100Mbps. supports WOL
  • Solid State Disk: 1 Compact Flash Type II socket  and one Disk on chip socket on board
  • Watch Dog timer: On board, supports 1 - 255 second system reset when software locks up.
  • LCD: Optional programmable 2 line x 20 character LCD module with 2 push buttons and 4 LED,
  • Power consumption: 5 vdc @ 1.9 A ( and 12 Vdc @ 0.1A for LCD display only)
  • Power connections: Terminal block on rear panel
  • Operating temperature: 0 to 60 deg. C
  • Dimensions: 5.75”W x 1.67” H x 8.76” D
  • Weight: 2 lbs
  • Operating Systems supported: Windows or Linux

Order Information:

EB-3800 Embedded System with 300 Mhz CPU                                           $399   1 to 19

EB-3800LCD Embedded System with 300 Mhz CPU and LCD module             $434   1 to 19
