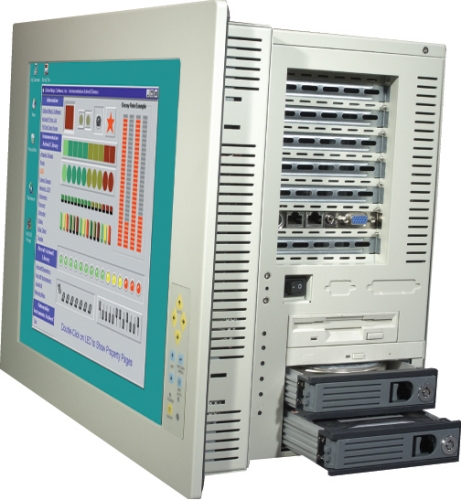

15” Flat panel Industrial computer workstation

Specifications:

• 15” LCD
• LCD resolution = 1024 x 768
• LCD colors = 262,000
• LCD brightness = 250 nits
• Optional resistive or capacitive touchscreens available
• 2 x IDE removable hard drive slots on the side of enclosure
• 1 x floppy drive slot on the side of enclosure
• 1 x slim CDrom slot on te side of the enclosure
• 7 full size expansion slots
• Backplanes available:  PCI-7S, IP-7S and PCIAGP-6S
• Cooling fans: 1 internal and 1 in power supply
• Power Supply: ACE-832AP PS2 type, 300 watt, 90 - 264 VAC input, Active PFC, MTBF = 100K hours
• 3.3 vdc @ 28A
• 5 vdc @ 30A
• 12 vdc @ 15A
• -12vdc @ 0.8A
• 5Vsb @ 2A
• Operating temperature: 0 to 50 deg. C
• Vibration: 5 - 17 Hz, 0.1” double amplitude displacement and 17 - 640 Hz, 1.5G acceleration pk. to pk.
• Shock: 10 G acceleration pk. to pk - 11ms
• Color: White is standard (Pantone 413C)

Ordering Information:

• MPC-55AW-AL-RX 15” Industrial Workstation
• MPC-55AW-AL-RX/T-R151B 15” Industrial Workstation with resistive touchscreen
• MPC-55AW-AL-RX/T-C151  15” Industrial Workstation with capacitive touchscreen

Optional Items:

• Backplanes:
• PCI-7S 7 slot backplane with 4 PCI, 2 ISA and 2 PICMG slots
• IP-7S  7 slot backplane with 4 PCI and 3 ISA slots
• PCIAGP - 3 PCI, 2 ISA, 1 AGP and 1 PICMG slots
• Single board computer:
• Rocky 4786 series of P4, 800 Mhz FSB high performance single board computers
