Specifications

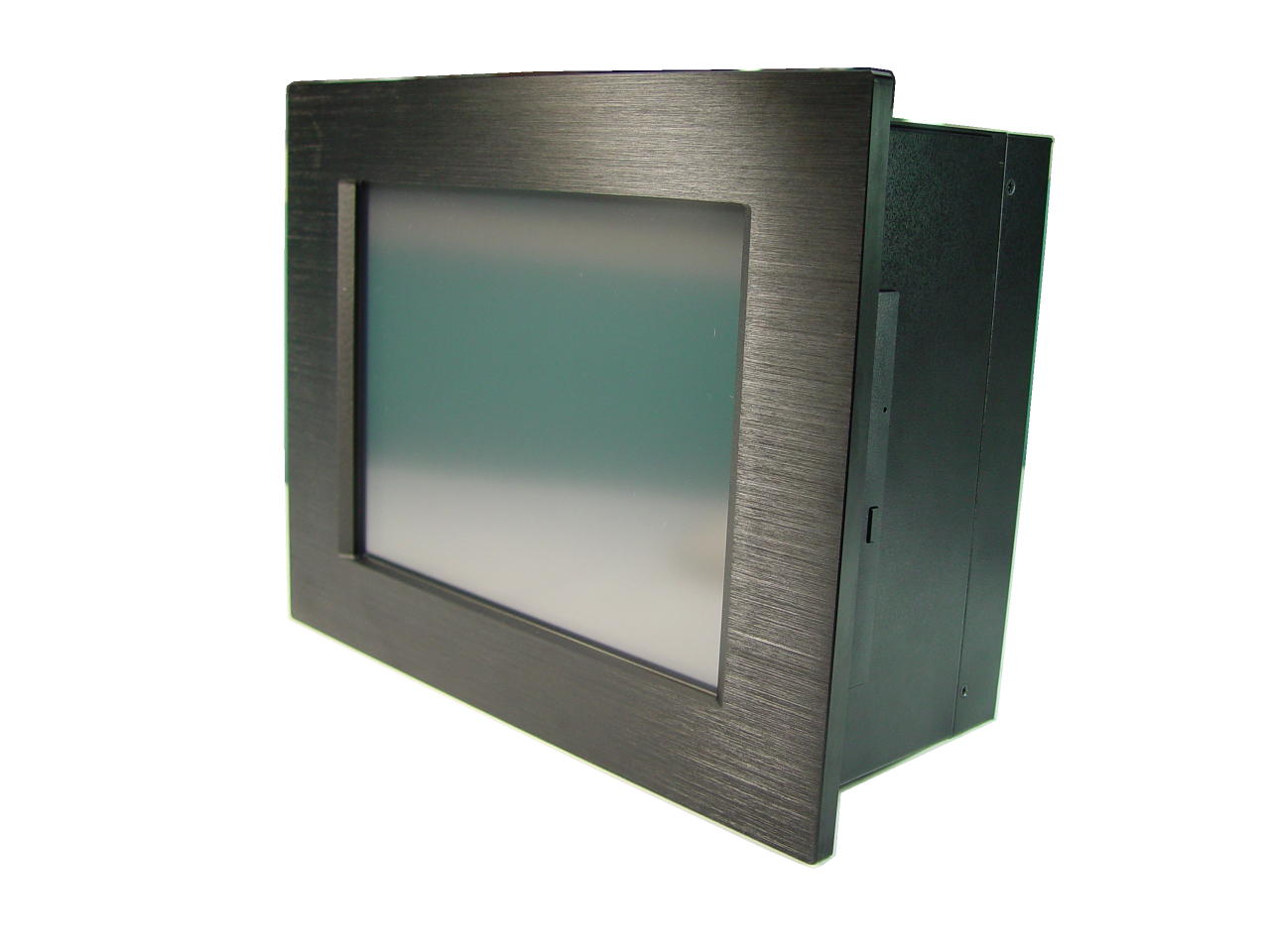

- Display 10.4" color TFT flat panel, 800 x 600 resolution
- Luminance 150 nit (cd/m2)
- CPU P-III equivalent low power VIA 800 Mhz or 1 Ghz cpu
- System Chipset VIA VT8601 and 82C686B
- Front Bezel Thick 10mm Aluminum-alloy with a brushed anodized finish
- Enclosure Rugged 1.2mm thick steel metal
- Wall-mounting: VESA–75 and VESA-100 mounting hole pattern on rear
- Standard front bezel colors Brushed silver and Black.
- Front Panel Protection rating: Meets NEMA 4, 12 and IP65, 56 water resistant EIA standard
- HDD (optional) 10 GB,2.5” internal HDD (larger capacity drives available)
- System Memory (optional) Supports up to 512MB
- CD-ROM (optional) One internal slim size CD-ROM, 24x speed
- Disk On Module (optional) Supports up to 512MB
- PCI expansion slot 1 x PCI slot for a 1/2 size PCI expansion board (also used for PCMCIA expansion board)
- DiskOnChip(optional) Supports M-System’s DOC up to 288MB
- Serial ports 4x COMs ( 3 x RS232 port ,1 xRS232/422/485 port) one may be used for optional touchscren
- USB 2 x USB ports and IrDA pin header on board
- Parallel Port LPT port for Printer connection.
- Keyboard and Mouse One PS/2 KB/Mouse port
- Audio Microphone, Speaker, Line-in
- LAN Interface Chipset Realtek 8139C, supports 10/100 Mbp, auto-negotiation ,auto-switch LAN
- DVD MPEG-2 supports DVD video playback
- VGA - Display Chipset Trident AGP 4X TFT LCD/CRT with 8MB shared memory, 3D/2D support
- Touch Panel (Optional) Long-life 4-wire resistive touchscreen
Environmental and Power
- Power Requirements Internal UL/CE safety approved power supply
- Dimension ( WxHxD) 12.2” x 9.5” x 5.1” (310 x 240 x 128.6 mm)
- Operating Temperature 0 to 55C (32 to 131F)
Ordering information
PPC-107P with 800 Mhz CPU, 128 Mb ram, 20 Gb hard drive, CDrom and internal AC power supply = $1649
PPC-107P-DC with 800 Mhz CPU, 128 Mb ram, 20 Gb hard drive, CDrom and internal DC input power supply = $1699
Front Bezel Color : Silver color or Black color
Optional Upgrade Items:
DVD drive upgrade = Add $40
SDRAM: 256 Mb upgrade = Add $49
Touch Screen = Add $139
1 Ghz CPU upgrade = Add $30
PCMCIA expansion card in PCI slot = Add $70
|
