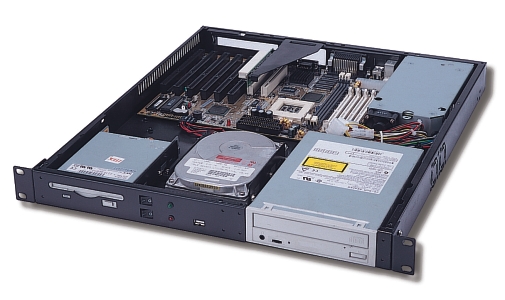

1U rack chassis for ATX motherboards Includes 200 watt ATX power supply and 1 PCI slot riser card

		FEATURES

	*19" Compact size rack mounted ATX chassis,* *Heavy duty steal for harsh industrial environments* *Supports ATX, Micro ATX motherboard* *One PCI expansion slot* *One USB connector at the front panel* *Supports 200W ATX power supply* *Supports two 3.5" drives and one 5.25" removable drive* *Modular 3.5" drive bay* *Supports 1 PCI slot RISER CARD inserted in to 2nd PCI slot*

Construction Heavy duty steel, 19" rackmount chassis
Disk Drive bays Support one fixed 3.5" drive, one fixed 3.5" or two fixed 2.5" drives, and one 5.25" removable drive or one 3.5" drive
Cooling Fan Two 4cm DC Fans (7.0 CFM ea.)
Controls Power ON/OFF, RESET buttons
Status Indicators Power ON/OFF, HDD status
Dimension (H x W x D) 44.4 x 431 x 500mm (1.75" x 16.97" x 19.69")
Weight 6kgs (include power supply)
Motherboard Option ATX, Micro ATX motherboard
Power Supply Included JET-216AP 200W ATX Type power supply with PFC


Environmental Specification

Operating Temperature 0 to 50 deg. C Relative Humidity 5% to 95 deg. C, non-condensing Altitude 10,000ft (3,000m) Vibration 1.5G Max and 0.1" p-p at 5 to 500Hz Shock 10G peak acceleration (10m/sec) Safety Meets UL, CSA, and TUV EMI FCC Class A and CE


		Ordering Information
