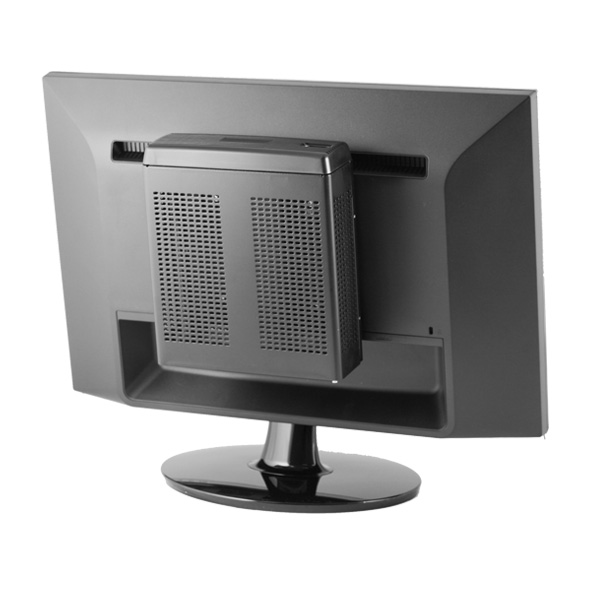

Small compact fanless embedded computer with flexible power supply options
|
|
|
|
|
|
Specifications
|
|
|
CPU
|
Intel 1.66 Ghz Intel Atom D410
|
|
Chipset
|
Intel NM10 Express Chipset
|
|
Memory
|
512 Mb (up to 4 GB capacity) 2 x DDR2 800/667Mhz 2 DIMM sockets
|
|
Video
|
Intel GMA 3150
|
|
Hard Drive
|
80 GB, 5400 rpm, 2.5” drive (larger drives available)
|
|
Hard drive interface
|
SATA 3GB/s
|
|
Audio
|
Realtek ALC662 for HD 4 channel Intel HD audio and AC97 audio
|
|
Compact Flash socket
|
Optional instead of internal hard drive.
|
|
Rear panel I/O ports
|
- USB 2.0 x 4 on rear panel, 4 internal on mainboard (Total = 8 USB 2.0 port
- PS/2 keyboard and mouse
- VGA 15 pin
- LAN, RJ-45 10/100 base T Ethernet via Realtek RTL8103EL
- Audio - mic, line in and line out
- 12 vdc DC power
|
|

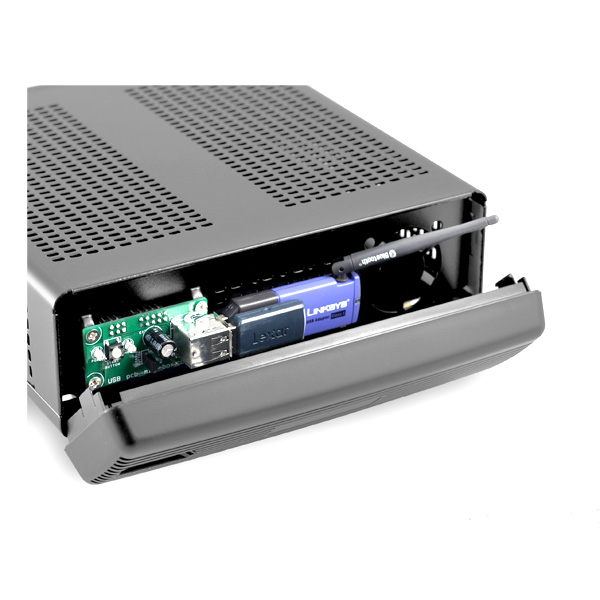

Internal I/O on board
|
- USB 2.0, x 4, pin headers on mainboard (Total = 8 USB 2.0 ports)
- COM ports, RS232 x 2 internal pin header
- Front panel audio, mic and line out
- Fan pin header for case fan
- SATA 3.0GBs x 2 hard drive header
- ATX power connector
|
|
Expansion
|
Internal PCI socket on main board - no external slot in this enclosure
|
|
Power Supply Input
|
12 vdc, 60 watt with external AC adapter
|
|
Optional power supplies
|
6 - 24 vdc intelligent automotive version and 9-36 vdc wide range version available
|
|
Input current
|
|
|
Dimensions (W x L x H)
|
7.6” x 8.3” x 2.4” ( 192 x 210 x 62 mm)
|
|
Operating System
|
Supports Windows XP, XP Home and Linux Operating Systems. (not included)
|
|
Options available
|
CF modules, IDE flash drive, Windows XP, XP Home, Linux OS, WIFI usb module
|
|
|
Call us for other available options to fit your application
|
|
Ordering Infomation
|
EB-100A with Intel 1.66 Ghz CPU, 512 Mb ram, 80 Gb hard drive, AC adapter
EB-100A-624 with Intel 1.66 Ghz CPU, 512 Mb ram, 80 Gb hard drive, 6-24 vdc power supply
EB-100A-936 with Intel 1.66 Ghz CPU, 512 Mb ram, 80 Gb hard drive, 9-36 vdc power supply
|
|
|
