Specifications:

CPU

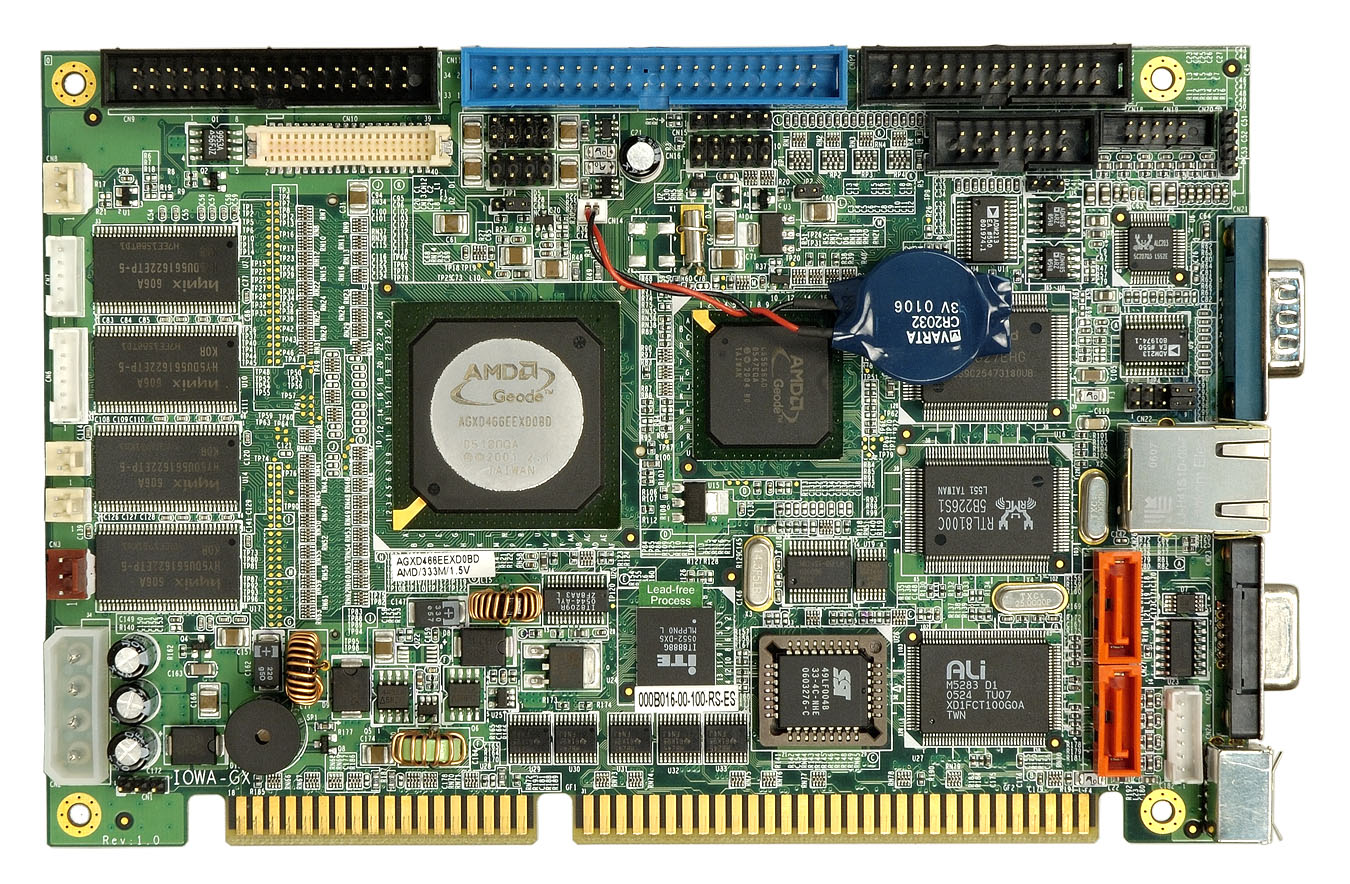

AMD Geode GX-466 processor on board

CPU speed

333 Mhz

FSB speed

Chipset

AMD CS5536

Memory

128 mb on board and 1 x 200 pin SODIMM DDR 266Mhz up to 512 mb

Video

CRT and 24 bit TTL LCD interface - integrated in AMD Geode GX466

Serial ATA drives

2 SATA 150 with ALI M5283 RAID 0, 1 support

IDE drives

1

Floppy Drive

1

Compact Flash

1 x CF II

Expansion

Audio

Realtek ALC 203 with AC97 codec

LAN Ports

1 x 10/100 Mbps LAN, Realtech RTL8110C

Keyboard + Mouse

1 x PS2 keyboard and mouse

USB Ports

4 x USB 2.0

Serial Ports

1 x RS232 and 1 x RS232/422/485

IrDA

Parallel Port

1

Watchdog

software programmable - 1 to 255 seconds - system reset

Power Requirement

5v@0.92A (AMD GX 466 CPU and 256 Mb DDR ram)

Hardware Monitor

Operating Temp.

0 to 60 deg C

Relative Humidity

5% to 95% non condensing

Dimension

165 x 115mm

Weight

2.2lbs (1 Kg)
