Specifications
- Video Input: 4 Ch. BNC Composite Video, NTSC/PAL auto sensing
- Audio Input 4 Ch. Stereo Audio
- PCI Interface PCI V2.1 Compliance,Plug & Play support
- Board ID Dip-switch with 7-segment LED for use with multiple boards in one system
- Sampling Rate 44.1 Khz and 48 Khz
- Quantization 8 Bit data depth
- Data Format PCM, ADPCM
- Video Compression MPEG-4 Advanced Simple Profile @L3MPEG-2 MP@ML , MPEG-1
- Video Resolution 720 x 480, 352 x 240 (NTSC)720 x 576, 352 x 288 (PAL)
- Frame Rate Up to 30(NTSC), 25(PAL) FPS for each channel
- Image Processing Hardware control of brightness, contrast and saturation.
- Video Quality
- DVD quality full D1 video at 3 Mbps
- High quality D1 video at 1 Mbps
- High quality CIF video at 384Kbps
- Device Driver Drivers for Window 2000 and Windows XP systems
- SDK Includes Software Development Kit (SDK) and demo program for software application development
Ordering Information

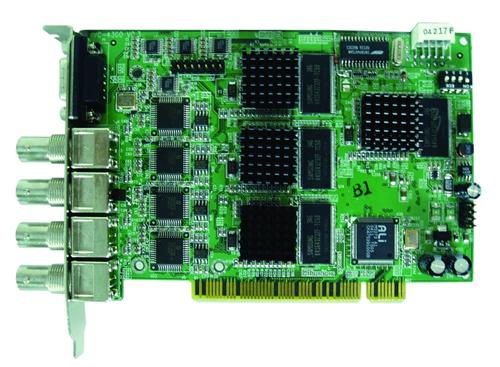

IVC-4300: 4-Channel MPEG-4 Audio/Video Capture Card
|
