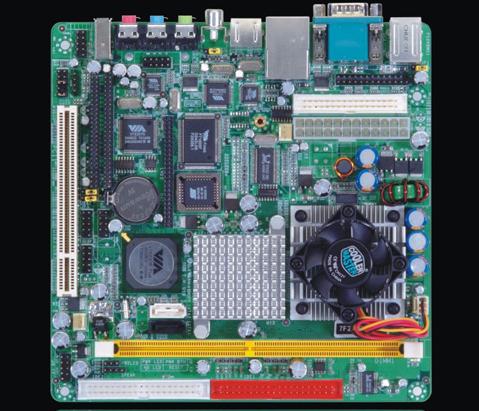

Specifications
|
|
|
Board Type
|
Mini ITX
|
|
CPU
|
VIA C7 1.5 Ghz
|
|
Chipset
|
VIA CN700 north bridge and VT8237RP South bridge
|
|
Memory
|
1x 240 pin DDR2 socket for up to1GB 400mhz SDRAM
|
|
Video
|
AGP 8x on board, shares memory, 1 VGA 15 pin connector
|
|
TV video output
|
NTSC and PAL compatible - S video and RCA video jacks VT1622A chip (optional)
|
|
LAN
|
On board 10/100 base T standard Ethernet -supports boot from LAN, VT6103 chip
|
|
Expansion-PCI
|
1 x PCI slot (PCI 2.2)
|
|
Expansion socket
|
socket for various daughter boards
|
|
Audio
|
6 channel AC97 Codec Mic, line in and line out or Front, Rear, Center and Bass jacks
|
|
IEEE 1394a ports
|
2 x IEEE1394a compliant OHCI spec 1.0 and IEEE1394a-2000 support up to 400Mbps (optional)
|
|
SATA Hard drive ports
|
2 x SATA 150mbps that support RAID 0 and 1
|
|
IDE Hard drive ports
|
2 x IDE support 4 ultra DMA 133 drives
|
|
USB ports
|
8 x USB 2.0
|
|
Serial ports
|
2 x RS232 one 9 pin D and one pin header on board
|
|
Printer ports
|
1
|
|
PS2
|
Keyboard and mouse PS2 connectors
|
|
Floppy port
|
1 on board connector
|
|
Hardware Monitor
|
monitors CPU and system temperatures and voltages
|
|
Dimensions
|
6.7” x 6.7” (170 x 170 mm)
|
|
|
Optional Daughter boards (only 1 board can be added)
|
|
AD2COM
|
Adds 2 RS232 COM ports supplied with I/O shield ( total = 4 including the 2 on main board)
|
|
AD4COM
|
Adds 4 RS232 COM ports ( total = 6 including the 2 on main board)
|
|
ADPCM
|
Adds a PCMCIA slot and a Compact Flash slot
|
|
ADCF
|
Adds an IDE supported Compact Flash Disk
|
|
ADRTLAN-P
|
Adds a 2nd 10/100 Ethernet port (total = 2 including LAN port on main board)
|
|
ADRTLAN-G
|
Adds a 10/100/1000 Ethernet port (total = 2 including LAN port on main board)
|
|
AD3RTLAN-P
|
Adds 3 10/100 Ethernet ports (total = 4 including LAN port on main board)
|
|
AD3RTLAN-G
|
Adds 3 10/100/1000 Ethernet ports (total = 4 including LAN port on main board)
|
|
ADLVCOM
|
Adds 2 RS232 COM ports and an LVDS interface for connection to LCD panels
|
|
AD12VB
|
External 12 vdc input, 60 watt DC/DC power supply module for the JF2 series Mini ITX boards
|
