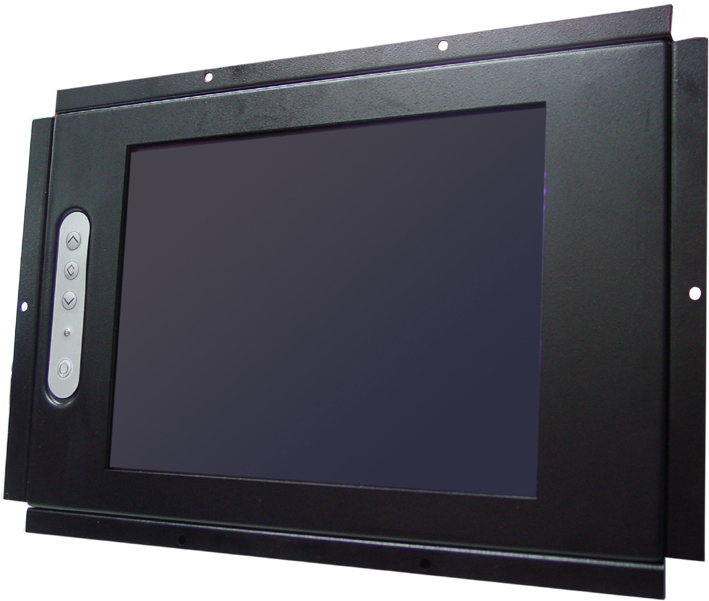

LD615E 6.4" sunreadable LCD monitor


	Sun readable 6.4” 1000 nit LCD monitor with -20° to +60° C temperature range, low power requirements and a versatile design - 3 configurations with touchscreen option


	Sunreadable - Very High Brightness - 1000 nits Wide Temperature range -20 to + 60 deg. C 3 configurations: full monitor, open chassis and kit of parts with cables VGA input standard, Composite, S video and DVI optional Auto dimming option available 12 vdc powered with external AC adapter Front or rear mounted adjustment keypad Touchscreen options available

Specifications:
LCD Display	6.4" TFT Active Matrix Panel
Brightness	1000 nits (cd/m²⁾
Pixel Pitch(mm)	0.203 H x 0.203 V mm
Backlight	long life LED backlight
Max. Resolution	640 x 480 (VGA)
Contrast Ratio	400:1 high contrast ratio
Display Area	129.6 x 97.4 mm
Response Time(Typ.)	40 ms typical
Display Colors	262,144
Viewing Angle	horizontal = 120° and vertical = 95°
Video input signal	VGA 15 Pin D is standard, additional composite, S video, DVI inputs are optional
Composite and S-video input	Optional
DVI input	Optional
Touchscreen	Optional Resistive touchscreen available
OSD Control Buttons	Keypad buttons - Power, Menu, Select (+,-) Auto (can also be mounted on rear chassis)
Auto dimming function	Optional auto dimming sensor that adjusts brightness for ambient light
Power input	12 vdc supplied by an external power supply which operates from 115 vac
Power Consumption	11 watts
Operating Temperature	-20 to +60 deg C

Ordering Information:

LD 615E 6.4” Sun Readable Industrial monitor with VGA input
LO 615E 6.4” Sun Readable Industrial open chassis monitor (no front bezel) with VGA input
LH 615E 6.4” Sun Readable Industrial monitor kit of parts with VGA input

Optional Items that can be added to the above products:

VGA and Composite video (NTSC) and S video input - add VCS to the end of the part number
VGA and DVI input- add VD to end of part number
Auto dimming - add an A to the end of part number
Touchscreen - add TR for resistive to the end of part number
Optical bonding - Enhances outdoor readability with a touchscreen or cover glass- add OB to end of part number


	Digital Technology, Inc. 985-809-1766 Fax: 985 809 1665 email: sales@digitaltechinc.com
