Specifications:

CPU

Intel® Socket 478 Prescott/Celeorn® D up to 2.8GHz,

CPU speed

Up to 2.8 Ghz

FSB speed

FSB533Mhz

Chipset

Intel® 845GV + ICH4

Memory

1 x DDR 333MHz DIMM socket support up to 1GB

Video

• CRT integrated in Intel® 845GV
• LVDS Dual 24-bit LVDS by CH7305

SATA drives

2

IDE drives

2

Floppy Drive

Compact Flash

1 x CFII

Digital I/O

8 total (4in and 4 out0

Expansion

1 x PC 104

Audio

AC’97 2.3 Realtek ALC655

LAN Ports

2 x Gigabit LAN Daul RTL8110S

Keyboard + Mouse

1 x PS2 Mini DIN + 5 pin for Keyboard

USB Ports

4 x USB 2.0

Serial Ports

3 x RS-232, 1 x RS232/422/485

IrDA

1

Parallel Port

1

Watchdog

Software programable supports 1-255 sec. system reset

Power Requirement

+5V@2.9A, +12V@1.1A(Intel® Celeron® D 2.4G with DDR266 256MB RAM)

Operating Temp.

0 to 60 deg C

Relative Humidity

0 to 95% non condensing

Dimension

280 mm x 251 mm

Weight

GW: 1100g; NW: 500g

Ordering Information:

Description

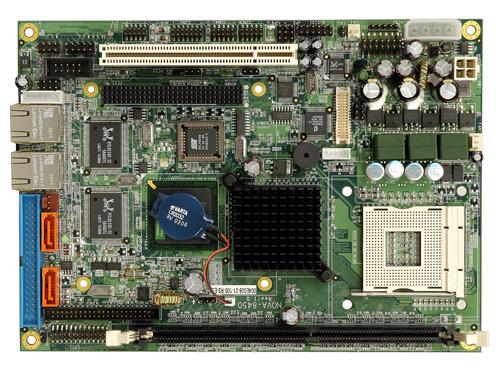

NOVA-8450G2-R10

5.25” SBC Intel® Pentium® 4 Prescott/ Celeron® D processor FSB533Mhz, CRT, LVDS, Dual GbE, SATA and Audio

CF-521-RS

CPU Cooler

32200-015100-RS

LPT cable
