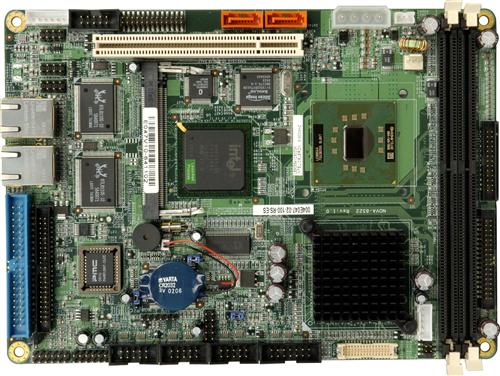

5.25” Intel Pentium M / Celeron M single board computer with CRT, LVDS, Dual GbE and Audio
NOVA-8522_f_2265x1704_50002

Features

  • Intel® Pentium® M / Celeron® M CPU support up to FSB 400 MHz
  • CRT/LCD VGA integrated in i852GM
  • Supports dual 18-bit LVDS
  • Supports independent dual displays
  • 2 x DDR 266 support up to 2GB
  • Supports 1 x PCI and 1 x mini PCI
  • CFII, LAN, USB2.0, 4 COM, Audio integrated

Specifications:

CPU

  • Intel® Celeron® M 800MHz zero cache processor on board
  • Intel® Socket 479 for a Pentium® M/Celeron® M cpu

CPU speed

Up to 2.1 Ghz

FSB speed

400 Mhz

Chipset

Intel® 852GM + ICH4

Memory

2x DDR266 SDRAM sockets for up to 2GB

Video

  • CRT integrated in Intel® 852GM
  • LVDS Dual 18-bit LVDS integrated in Intel® 852GM
  • DVI option

Serial ATA drives

2

IDE drives

2

Floppy Drive

1

Compact Flash

1 x CFII socket

Digital I/O

8 total (4 input / 4 output)

Expansion

1 PCI socket

Audio

AC’97 codec

LAN Ports

2 x Gigabit LANs (Dual RTL8110S chipis)

Keyboard + Mouse

1 x PS2 Keyboard/Mouse support

USB Ports

6 x USB 2.0 port

Serial Ports

3 x RS-232 Serial port1 x RS-232/422/485 selectable

IrDA

1 by pin header (SIR mode)

Parallel Port

1 Supports SPP/EPP/ECP mode

Watchdog

Software programable supports 1-255 sec. system reset

Power Requirement

+5A@4.10A, +12V@2.36A(Intel® Celeron® M 1.6G, 400MHz with 2 x DDR333 512MB

Hardware Monitor



Operating Temp.

0 to 60 deg C

Relative Humidity

0 to 95% non condensing

Dimension

280 mm x 251 mm

Weight

GW: 1000g; NW: 400g

Ordeing Information.

Description

NOVA-8522G2-R10

5.25” SBC Intel® Pentium® M / Celeron® M processor FSB400, CRT/LCD, Dual GbE, SATA and Audio

NOVA-8522G2-800Z-R10

5.25” SBC Intel® Celeron® M 800MHz zero cache processor, CRT/LCD, Dual GbE, SATA and Audio

NOVA-8522G2-DVI-R10

5.25” SBC Intel® Pentium® M / Celeron® M processor FSB400,CRT/LCD,Dual GbE,SATA,Audio and DVI

NOVA-8522G2-800Z-DVI-R10

5.25” SBC Intel® Celeron® M 800MHz zero cache processor,CRT/LCD,Dual GbE,SATA,Audio and DVI

CF-479B-RS

CPU Cooler

32200-000058-RS

FDD cable

32200-015100-RS

LPT cable

32100-052100-RS

ATX Power cable
