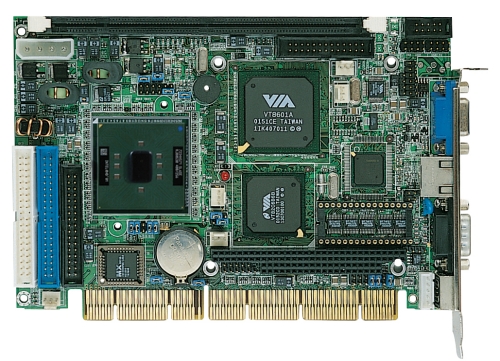

Specifications:

CPU

ULV Intel® Celeron® 400 MHz on board

CPU speed

400 Mhz

FSB speed

Chipset

VIA VT8601A + VT82C686B

Memory

1 x 168-pin PC100/133 MHz up to 512MB

Video

CRT integrated in VIA VT8601A

IDE drives

2

Floppy Drive

1

Compact Flash

1 x CFII and 1 disk on chip socket

Expansion

1 x PC/104 socket (ISA Bus version)

Audio

VIA VT 1612A

LAN Ports

RTL8100B for 10/100Mbps

Keyboard + Mouse

1 x PS/2 keyboard/mouse

USB Ports

4 x USB 1.1

Serial Ports

1x RS232 and 1x RS232/ 422/ 485

Digital I/O

8 bit digital I/O, 4 input / 4 output

IrDA

Parallel Port

1

Watchdog

Software programmable supports 1~255 sec. system

Power Requirement

5VSB@0.18A, 5V@2.6A, 12V@0.17A,(ULV Intel® Celeron® 400 MHz, PC133/ 512 MB RAM)

Hardware Monitor

Operating Temp.

0 ~ 60º (32 ~ 140ºF)

Relative Humidity

operation: 5% ~ 95% non-condensing

Dimension

165mm x 115 mm

Weight

GW: 1.0Kg
