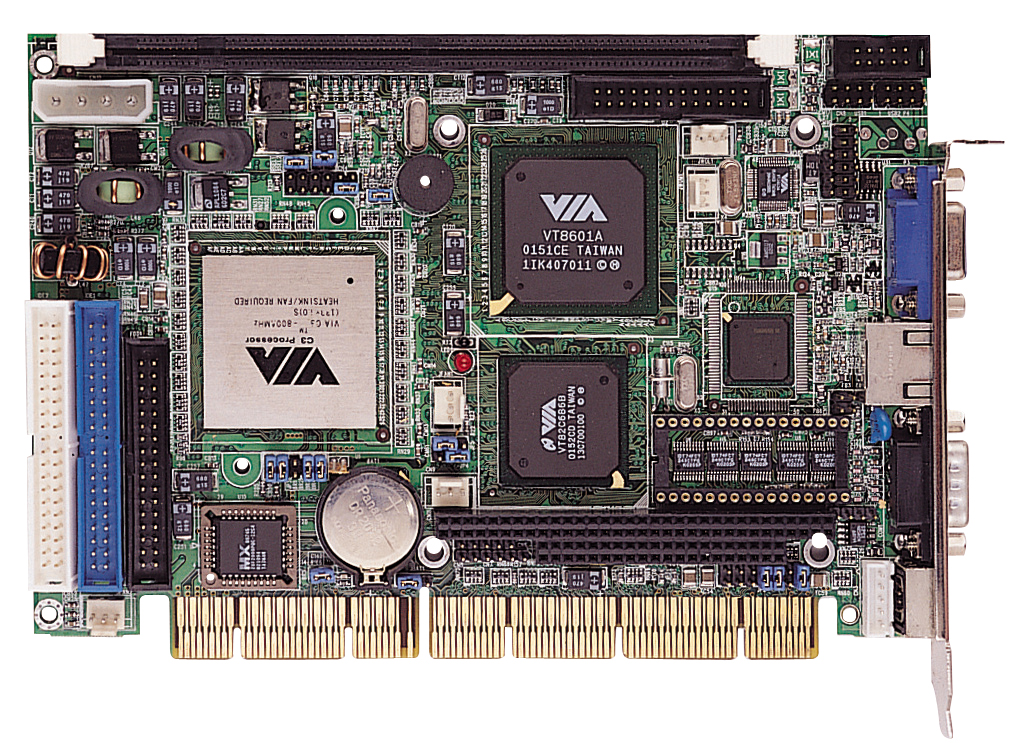

Half size single board computer with a 1 Ghz VIA CPU, LAN, Audio

PCISA-C800EV-1

Features:

  • 1 GHz VIA cpu
  • Lan,
  • 4 USB 1.1
  • Audio

Specifications:

CPU

VIA C3

CPU speed

1 Ghz

FSB speed

133Mhz

Chipset

VIA VT8601T and VT82C686B

Memory

1 x 168 pin PC100/133 Mhz up to 512 Mb

Video

VGA integrated in chipset

Serial ATA drives

None

IDE drives

2 (1 IDE socket for 2 drives)

Floppy Drive

1

Compact Flash

CF type II and 1x Disk On Chip socket

Expansion

1 x PC104 connector on board (ISA Bus)

Audio

VIA VT 1612A chip

LAN Ports

1 10/100 Mbps Realtech RTL8100

Keyboard + Mouse

1 x PS2 keyboard and mouse

USB Ports

4 x USB 1.1

Serial Ports

1x RS232 and 1 x RS232/422/485

IrDA



Parallel Port

1

Watchdog

Software programmable 1 to 255 seconds

Power Requirement

5v@3.9A, 12 V@0.2A, 5vSB@0.18A (1ghz CPU and 512 mb PC133 ram)

Hardware Monitor



Operating Temp.

0 to 60 deg C

Relative Humidity

5 to 95% non-condensing

Dimension

165 x 115 mm

Weight

1kg

Order Information: PCISA-C800EVR-RS-1G-R20 Half size board with 1 GHz CPU, VGA, Audio and LAN
