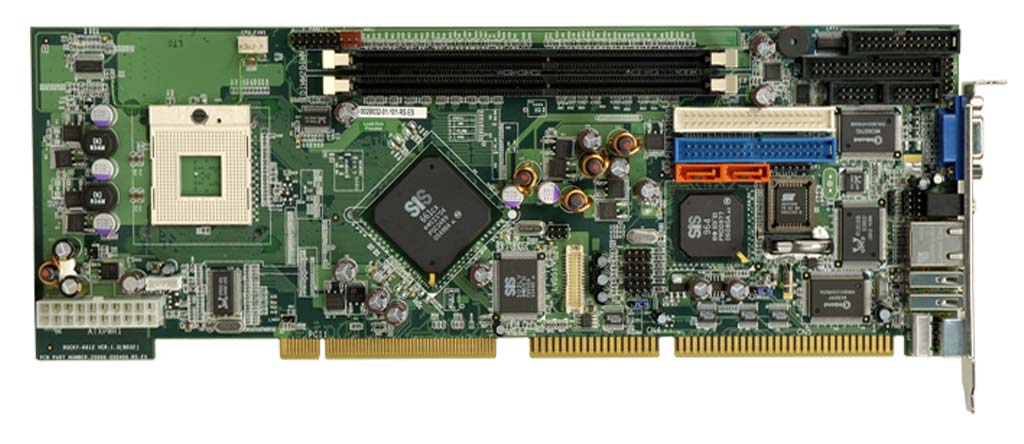

Specifications:

CPU

Intel Pentuim M/Celeron-M CPU up to 2.26 GHz

CPU speed

up to 2.26 GHz

FSB speed

533/400 MHz

Chipset

SiS 661CX + SiS 964

Memory

2 x DDR 184-pin sockets of 400/333 MHz DDR SDRAM up to 2 GB

Video

Graphic controller integrated in SiS 661CX Dual 24-Bit LVDS for Dual Display

Serial ATA drives

2 x SATA-150 connectors

IDE drives

1 x ATA 100

Floppy Drive

1 x FDD by Pin header

Compact Flash

Expansion

Audio

AC ‘97 codec

LAN Ports

1 x 10/100/1000 Realtek RTL8110S Gigabit LAN

Keyboard + Mouse

1 x PS2 Keyboard/Mouse

USB Ports

8 x USB 2.0 (6 by pin header)

Serial Ports

2 x RS-232 by pin header

IrDA

1 x IrDA by pin header

Parallel Port

1 x LPT by pin header

Watchdog

Software programmable supports 1 ~ 255 sec system reset

Power Requirement

+ 5 V @ 4.28A, +12V @6.14 A (P4-3.4/2M/800(HT) CPU with 2 GB DDR 400 RAM

Hardware Monitor

Yes

Operating Temp.

0 ~ 60 C (32 ~140 F)

Relative Humidity

5% ~ 95% non-condensing

Dimension

380 (W) mm x 133 (L) mm

Weight

 2.4 lbs
