Full size P4, socket 775 board with 2 x PCI Express Gb LAN single board computer

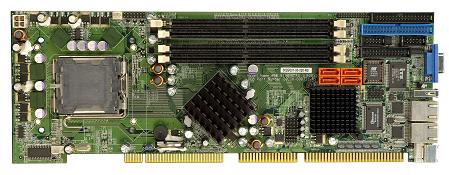

WSB-9154 small image02

User Manual

Features:

  • P4 cpu up to 3.8 GHz
  • Intel 915GV and ICH6 chipset
  • Dual GB Lan

Specifications:

CPU

Intel socket 775 P4 Prescott, Celeron D with 800/533 FSB with Hyperthreading

CPU speed

Up to 3.8 Ghz

FSB speed

800/533 Mhz

Chipset

Intel 915GV + ICH6

Memory

4 DDRII 240 Pin sockets for 533/400 Mhz DDR RAM up to 4 Gb

Video

Intel Graphics on chipset, DVI option uses Silicon Image SIL1362CLU SDVO

Serial ATA drives

4 SATA 150 connectors

IDE drives

1 IDE connector for 2 drives

Floppy Drive

1 floppy connector

Compact Flash



Digital I/O

8 (4inputs and 4 outputs)

Audio

AC’97 with optional connector bracket

LAN Ports

2 1Gbe LAN ports, Marvell 88E8053 chips

Keyboard + Mouse

1 PS2 connector cable for keyboard and mouse

USB Ports

7 USB 2.0 (six onboard headers and one on bracket

Serial Ports

2 RS232 serial ports

IrDA

1

Parallel Port

1

Watchdog



Power Requirement

+5@3.86A and +12@5.21A (P4, 3.4GHZ, 1 GB ram)

Hardware Monitor

monitors fans, temperatures and voltages

Operating Temp.

0 to 60 deg C

Relative Humidity

0 to 95% non-condensing

Dimension

4.8” x 13.425” (12.2cm x 34.1cm)

Weight

3 lbs

Order Information:

  • WSB-9154-R10 with VGA, Dual GBe LAN and SATA
  • WSB-9154DVI-R10 with VGA, Dual GBe LAN, SATA and DVI
